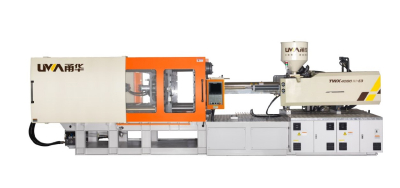

Introduction of yonghua plastic basket series injection molding machine
Plastic basket dedicated injection molding machine is the device especially for producing the disposable plastic fruit basket that researched and developed by our company aimed at the characteristic of plastic basket market.it has the advantages of domestic latest technology ,novel structure ,fast speed ,efficience ,low noise and energy saving.the enhanced power of pump motor of this injection molding machine ,the enlarged diameter of screw charging barrel alloy material ,the high -speed motor adopted by power source,the opening and closing differential circuit,and synchronic ratio control of edge opening mold ejection made this device become a dedicated injection molding machine of plastic products with fast production cycle and stable product size .
The application of this machine is wide,which is especially suitable for processing disposal back fruit basket (holding apple ,tomato ,persimmon,peach,kiwi fruit,and pear),grape basket,bean sprout basket,pleurotus ostreatus basket ,beverage turnover box ,beer basket ,disposable dishware litter-bin,sorting box,battery jar,lubricating oil barrel ,and coating barrel.
Characteristics of yonghua plastic basket dedicated injection molding machine
Over all :
. Adopted efficient screw ;it increased injection volume and achieved higher injection rate than ordinary machine.
. The synchronic ratio of edge opening mold ejection achieved higher overall operating efficiency .
. The mature and reliable clamping mechanism is durable ;the hinge pin and sliding parts all adopt self-lubricating design ,which can guarantee good lubrication for long-time operation.
. The enlarged design of pump motor achieved sufficient power source configuration and strong overload capacity ,which reduced electric machine heating and improved service life .
. Suitable for the reprocessing of recycled plastic with low cost and short molding cycle, which reduced the material cost of plastic basket and is especially available for the operation and production of small-medium sized enterprise entrepreneurs.
Injection
. Efficient screw and enlarged charging barrel diameter with 21:1draw ratio,whose plasticizing speed is fast with molding cycle .
. The screw charging barrels all adopt double alloy materials ,which is wear-resisting and corrosion resistance; its service life is 3-5times longer than ordinary screw charging barrel .
Computer interface
. 8-inch touch screen color liquid crystal interface made the operation method and picture setting to be realized by clicking the screen directly ,which can be operated easily .
. Procedure upgrading and updating as well as transplant of user configuration data can be achieved by panel USB disk .
.support multiple languages with more than 10.
Clamping
. The synchronic operation of edge opening mold ejection shortened product cycle and improved efficiency .
.core-pulling hydraulic pressure oil line has been enhanced ,which is more suitable for the ejection of large-scale products .
. The specification of standard equipped cooling water distributor is enlarged to 12*12,which is more suitable for the cooling of large mould .
Control system
. Fast and precise injection technology with guaranteed injection speed and precision .
. The automatic positioning function of opening mould achieved accurate cation of molding unloading .
.intelligent injection system can realize exemption of debugging and fast formation of products .
Others
.safety :
Triple protection of machinery ,electricity and hydraulic pressure;the sensitivity of mould protection is high,which can detect tiny obstacles and protect mould effectively.
Humanization
. The multiple-design of charging barrel heating shield ,hopper slide rail ,ejection shield and central lubrication can reduce labor intensity ,and improved the convenience of operation as well as maintenance while protecting operation safety .
