- Size: 7.02*1.85*2.29
- Place of Origin: china
- Brand Name: YONGHUA
- Model Number: YH430SP
- Weight: 21000.000 kg
- :
- :
- :
- :
- :
- :
- :

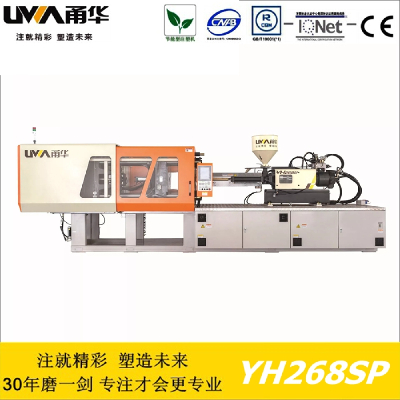

YH/SP series model adopted the advanced design concept of combining high-speed low-pressure injection with multiple action operation ;it redesigned clamping mechanism structure ,control system and oil-way system ,and reinforced them;by means of improving the operation speed of all actions and adopting multi-action compound operation ,it shortened the production cycle of thin wall products ,whose formation cycle is shorter with higher production efficiency compared with ordinary model.the newly designed load of mechanism structure and glue motor is lighter ,which made the device to operate stably and it lengthened equipment service life ;meanwhile,the application of energy-saving servo dynamical system greatly reduced production cost.
This series of injection molding machine is suitable for processing various thin-well molding products such as lunchbox ,yogurt-packing box, ice cream box,PS aviation cup ,disposal tableware,and bottle cap and other kinds of thin wall plastic products.
Overall :
The brand new design of rigid clamping mechanism ;shot shift adopted bilinear guide rail design that is equipped with rigid injection support ,which can guarantee the action stability of injection parts when moving;single cylinder injection mechanism with optional firing rate of 230mm/s and 330mm/s;innovative compound oil way design enabled the opening and closing mold and ,melt to be carried out simultaneously ,it prepared for injection while mold opening and closing,and guarantee product quality while improving production efficiency.
Injection :
·adopted European advanced single cylinder injection technology with fast injection response ,high precision,small movement inertia and accurate control of injection end.
High precise linear lead-rail injection structure guaranteed stability and injection accuracy.
Control system :
Dedicated Italian INOVA computer with high precision and response.
Realized automatic control of servo motor and formed integrated system together with driver .
Intelligent injection system can realize exemption of debugging and fast formation of products.
The major electric parts such ad contactor and travel switch all adopted imported brands including schneider an omron ,which have stable performance.
Clamping :
Adopted the high-strength template for the formation of thin-wall precise products;by means of comprehensive finite element technique analysis,it optimized structure,reduced and enhanced template rigidity .
The design of enlarging pull rod diameter and adoption of 42CrMo high-frequency quenching heat treatment process lengthened equipment service life in the situation of high-speed operation.
Computer interface :
10-inch touch screen color liquid crystal interface made the operation method and picture setting to be realized by clicking the screen directly,which can be operated easily .
Procedure upgrading and updating as well as transplant of user configuration date can be achieve by panel USB disk .
Suppose multiple languages with more than 10.
